Aluminium Conductor Steel Reinforced
| Business Type | Manufacturer, Exporter, Supplier, Trader |
Preferred Buyer From
| Location | Worldwide |

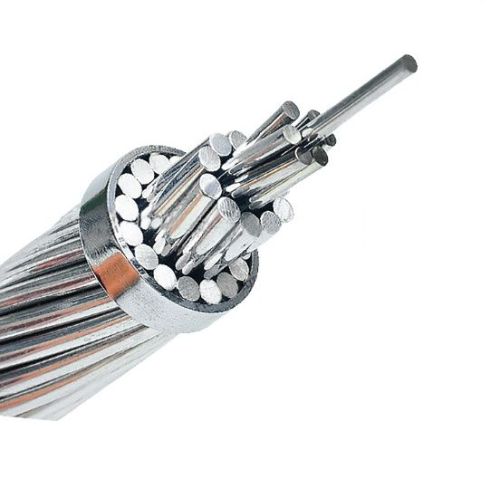

Aluminium Conductors Steel Reinforced (ACSR conductors), as the name suggests, consist of a solid or stranded steel core surrounded by strands of Electrolytic grade aluminium. The steel core imparts high mechanical strength to ACSR conductors, which are therefore suitable to be used for river crossings, overhead transmission lines, installations involving extra long spans etc. For any given resistance, ACSR conductors can be manufactured having a wide range of tensile strength as per customer requirements. The principal advantages of these conductors are high tensile strength and high mechanical strength to weight ratio, and therefore they are used for longer spans with fewer supports and lesser sag at a given tension. ACSR is preferred for it’s capacity to withstand extreme wind loads. Due to the greater diameter of ACSR conductors corona losses are low, resulting in substantial savings in high as well as extra high voltage overhead transmission.
Key Benefits
- ACSR conductors have high tensile strength.
- HIgh mechanical strength to weight ratio.
Standards
We manufacture ACSR conductor as per following standards
- BS 215 Part 2
- DIN 48204
- IEC 209
- ASTM B232 : 1981
- IS 398 Part 2 & 5
Technical Specifications
| Code Word | Nominal Aluminium Area | Stranding And Wire Diameter | Sectional Area Of Aluminium | Total Sectional Area | Approx Overall Diameter | Approximate Mass | Calculated Maximum Resistance At 200c | Approx Calculated Breaking Load | |||
| - | - | ALU | STEEL | - | - | - | TOTAL | ALU | STEEL | - | - |
| mm2 | mm | mm | mm2 | mm2 | mm | Kg/Km | Kg/Km | Kg/Km | OHm/Km | kN | |
| MOLE | 10 | 6/1.50 | 1/1.50 | 10.60 | 12.37 | 4.50 | 43.00 | 29.00 | 14.00 | 2.78000 | 3.97 |
| - | 18 | 6/1.96 | 1/1.96 | 18.10 | 21.12 | 5.88 | 73.00 | 49.70 | 23.30 | 1.61800 | 6.74 |
| SQUIRREL | 20 | 6/2.11 | 1/2.11 | 20.98 | 24.48 | 6.33 | 85.00 | 58.00 | 27.00 | 1.39400 | 7.61 |
| WEASEL | 30 | 6/2.59 | 1/2.59 | 31.61 | 36.88 | 7.77 | 128.00 | 87.00 | 41.00 | 0.92890 | 11.12 |
| RABBIT | 50 | 6/3.35 | 1/3.35 | 52.88 | 61.70 | 10.05 | 214.00 | 145.00 | 69.00 | 0.55240 | 18.25 |
| RACCOON | 10 | 6/4.09 | 1/4.09 | 78.83 | 91.97 | 12.27 | 319.00 | 216.50 | 102.50 | 0.37120 | 26.91 |
| DOG | 100 | 6/4.72 | 7/1.57 | 105.00 | 118.50 | 14.15 | 394.00 | 288.00 | 106.00 | 0.27920 | 32.41 |
| WOLF | 150 | 30/2.59 | 7/2.59 | 158.10 | 194.90 | 18.13 | 726.00 | 437.00 | 289.00 | 0.18710 | 67.34 |
| PANTHER | 200 | 30/3.00 | 7/3.00 | 212.10 | 261.50 | 21.00 | 974.00 | 586.00 | 388.00 | 0.13900 | 89.67 |
| KUNDAH | 400 | 42/3.50 | 7/1.96 | 404.10 | 425.20 | 26.88 | 1281.00 | 1116.00 | 165.00 | 0.07311 | 88.79 |
| ZEBRA | 420 | 54/3.18 | 7/3.18 | 428.90 | 484.50 | 28.26 | 1621.00 | 1185.50 | 435.50 | 0.06868 | 130.32 |
| MOOSE | 520 | 54/4.13 | 7/3.53 | 528.50 | 597.00 | 31.77 | 1998.00 | 1461.50 | 536.50 | 0.05595 | 159.60 |
| - | 560 | 42/4.13 | 7/2.30 | 562.70 | 591.70 | 31.68 | 1781.00 | 1553.00 | 228.00 | 0.05231 | 120.16 |
